Bearings are usually called the “joints of market.” Getting the selection right directly influences your equipment’s integrity, service life, and upkeep prices. Numerous bearing failures do not originate from low quality– they come from wrong choices. Points like load calculation mistakes, neglecting rate restrictions, or picking the wrong lubrication approach. These small blunders can create equipment to damage down early in its life span. This overview strolls you with the entire choice process, providing engineers and purchase professionals a clear path from examining working problems to confirming the right bearing version.

Part One: What You Required to Know Prior To Beginning

Prior to you open up any kind of bearing directory, ask on your own one question: Just what does this machine require the birthing to do? The answer hinges on five crucial areas:

1. Tons Qualities

Load is the top factor in birthing selection. You need to find out 3 things:

Instructions: Is it radial load (perpendicular to the shaft), axial load (parallel to the shaft), or a mix of both?

Dimension: Is it light, moderate, or heavy? Any effect loads?

Nature: Is the load stable or changing? Exactly how commonly do impact tons take place and how strong are they?

Take a belt conveyor as an example. The bearings at the drive end handle radial lots from belt tension, the weight of the belt and rollers, plus the shaft setting up. When computing, you have to think about various operating conditions– startup, regular operating, braking– and make use of the worst-case situation for your design.

2. Rate Conditions

(bearings for steel mill)

Speed is another essential element influencing birthing life. According to tiredness life theory, birthing life has an inverse partnership with speed. For variable rate problems, you need to determine the comparable speed. Take a rotating kiln assistance roller– its speed could vary from 0.5 to 2.5 r/min. You ‘d require to weight the running time at each speed to get an equal worth.

One point to keep an eye out for: recognizing only the maximum speed can screw up your lubrication method. The lubricant you select based upon full throttle may not create an appropriate oil film at reduced speeds. Likewise, if your maker has long still periods, you must discuss that– otherwise neighboring tools resonances could cause incorrect brinelling damages.

3. Required Service Life

Birthing life span is generally expressed as L10h (the number of hours that 90% of a bearing group will reach before tiredness spalling shows up). An usual mistake is going with an excessively long life– once L10h exceeds 100,000 hours, the bearing size obtains too large. It comes to be more difficult to lube, torque rises, and it becomes extra conscious minimal lots. In the end, it may fall short for reasons besides tiredness.

4. Room Restraints

You must understand your readily available area restrictions from the start– shaft size array, real estate birthed dimension, axial size restrictions. When you recognize the matching shaft size and offered space, you can promptly limit your alternatives.

5. Running Accuracy Needs

Many applications do simply fine with standard precision bearings. However, for high-speed or high-precision tools like equipment tool pins, you’ll require P5, P4, and even higher grades. Just keep in mind that going for higher precision without a genuine requirement will drive up prices significantly. Match the quality to your actual demands.

Sequel: Matching Bearing Kinds to Working Issues

Once you have those specifications clear, the next step is to match the appropriate bearing type based on lots instructions, size, rate, and misalignment tolerance.

1. Load Direction: Radial, Axial, or Combined?

This is one of the most basic filter. It can aim you to a couple of candidates today:

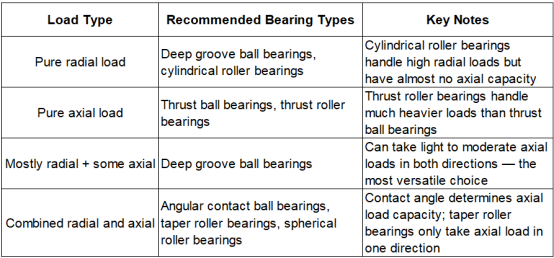

When the axial-to-radial load ratio (Fa/Fr) changes, your choice logic adjustments also. At reduced proportions, choose deep groove round bearings. At modest proportions, make use of small-contact-angle angular call bearings or taper roller bearings. At high ratios, you’ll require large-contact-angle bearings, or take into consideration integrating a drive bearing with a radial bearing.

( Radial)

2. Load Size: Ball Bearings or Roller Bearings?

This is a timeless choice:

Light or moderate tons: Opt for sphere bearings (deep groove or angular contact). The point call in between spheres and raceways gives lower friction, making them ideal for tool to broadband.

Heavy or impact lots: You have to utilize roller bearings (cylindrical, spherical, or taper). Line get in touch with between rollers and raceways supplies a lot higher tons ability and far better effect resistance.

3. Rate: Sphere Bearings for High Speed, Roller Bearings for Low

Usually talking, round bearings have higher rate limitations than roller bearings. For high-speed applications (above 1000 r/min), placed round bearings on top of your listing. When you need the highest possible rate with pure radial tons, open deep groove ball bearings are your best option. For incorporated loads at high speed, angular contact sphere bearings are the way to go.

Cylindrical roller bearings, taper roller bearings, and needle bearings have fairly reduced rate limits. They’re mostly suited for low-to-medium rate, heavy-load problems.

4. Misalignment Resistance: Do You Need Self-Aligning?

This set often obtains overlooked but it’s exceptionally essential. You ought to think about self-aligning bearings when:

Bearing housing bores don’t align well

The shaft isn’t stiff sufficient and flexes during procedure

The bearing span is long and thermal growth triggers angular imbalance

You’re making use of different split housings (like cushion block bearings)

Round roller bearings and spherical sphere bearings have concave outer ring raceways. This enables a certain amount of angular imbalance in between the internal and external rings without unsafe side stress and anxiety. They can make up for both vibrant deflection and fixed installment errors.

On the other hand, cylindrical roller bearings, taper roller bearings, and needle bearings have extremely restricted self-aligning ability. Also a small angular imbalance can cause tension concentration at the roller ends, causing high edge pressures that dramatically reduce birthing life. Deep groove round bearings do have some self-aligning ability, yet the allowable angle is tiny– surpassing it will minimize life as well.

5. Axial Expansion Compensation: Fixed End or Drifting End?

Lengthy shafts broaden and agreement with temperature adjustments during procedure. That indicates you need to establish your bearing setup with one set end and one drifting end.

NU and N collection round roller bearings have no flanges on the internal ring (or on one side). This lets the shaft relocation openly in the axial instructions about the housing– making them ideal as floating-end bearings. NJ and NUP collection can supply axial positioning in one or both directions, so they work well as fixed-end bearings. This arrangement is extremely usual in gearboxes and electrical motors.

Part Three: BMB Line Of Product at a Glance

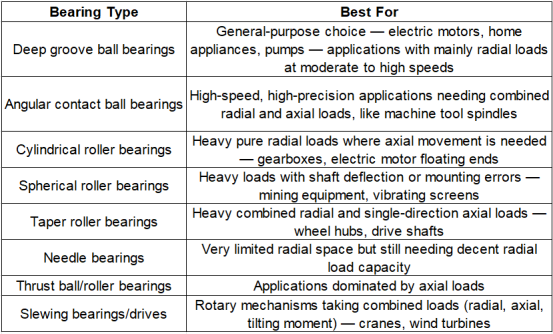

BMB supplies a full range of industrial bearings, covering all the major kinds we have actually gone over. This quick referral table attaches the choice principles over straight to specific product groups:

Part 4: Diving Deeper– Accuracy, Clearance, Lubrication, and Seals

( Axial)

1. Accuracy Grades

Criterion precision (P0) helps the substantial bulk of basic equipment. For precision equipment like device spindles or aerospace elements, you’ll need P5 or higher. Tighter precision implies tighter dimensional resistances and much better running accuracy– yet likewise greater expenses.

2. Internal Clearance and Preload

Bearings require to keep appropriate interior clearance after installment. Way too much clearance causes vibration and noise. Too little, and thermal growth can cause the bearing to seize. In grandfather clauses like device spindles, preload (applying adverse clearance) is utilized to improve system strength and rotational precision.

3. Lube Option

Lubrication is a make-or-break variable for birthing life. Grease works for a lot of moderate-speed and temperature level applications– it’s basic to seal and can run maintenance-free for long periods. Oil (oil bathroom, oil mist, jet lubrication) is much better for high-speed or high-temperature problems, as it dissipates heat more effectively. When picking a lubricating substance, examine the rate factor (ndm worth). Do not simply choose based upon maximum rate– the oil you choose could not create an appropriate film at lower rates.

4. Sealing Program

Pick the seal kind based upon your environment: contact seals keep dust out well but add some friction; non-contact seals benefit broadband but use less security against contamination; open bearings rely on external sealing systems.

Component Five: Life Computation– From Theory to Method

( or Combined Basic Filter Table)

At the end of the day, you need to verify whether your picked bearing will really satisfy the predicted service life. This is where standard score life calculation can be found in.

The basic score life L10 formula (ISO 281 standard):

For ball bearings: L10 = (C/P) SIX × (10 ⁶/ 60n) hours

For roller bearings: L10 = (C/P)^(10/3) × (10 SIX/ 60n) hours

Where:

C: fundamental vibrant lots ranking (kN)– found in the product brochure

P: comparable vibrant tons (kN)– takes both radial and axial loads right into account

The equivalent vibrant load P is computed as: P = X · Fr + Y · Fa

Fr is the radial tons, Fa is the axial lots

X and Y are coefficients that depend on bearing kind and the Fa/Fr ratio– check the brochure for these worths

For even more demanding problems, you can use change aspects: Ln = a1 × a2 × a3 × L10

a1 is the dependability variable (a1 = 1 for 90% reliability, regarding 0.21 for 99%)

a2 is the material variable (top quality bearing steel can reach 1.5 to 2)

a3 is the operating conditions aspect (good lubrication and cleanliness can provide 2 to 3)

With this estimation, engineers can validate that the chosen bearing fulfills the required service life. It likewise helps contrast several options and make data-driven choices.

This guide has strolled you via the full choice course– from assessing working conditions, to matching the ideal bearing type, to confirming life span. Understanding and applying this approach will assist you make accurate, efficient, and economical bearing choices throughout a large range of industrial applications.
